4mm 5mm Die Cutting to Size Polycarbonate Sheet PC Board
Clear Acrylic Color Acrylic Mirror Acrylic Glitter Acrylic Marble Acrylic PVC foam
4mm 5mm Cutting to Size Polycarbonate Sheet PC Board
Polycarbonate sheets show
Specifications
Size |
1250 x 2500mm 1220 x 2440mm(4'x8')
Width<=2050mm Length - No limited
|
Thickness |
1.2mm 2.0mm- 3/32'' 4mm 5mm 6.0mm- 1/4'' 9.0mm- 3/8''
|
Color |

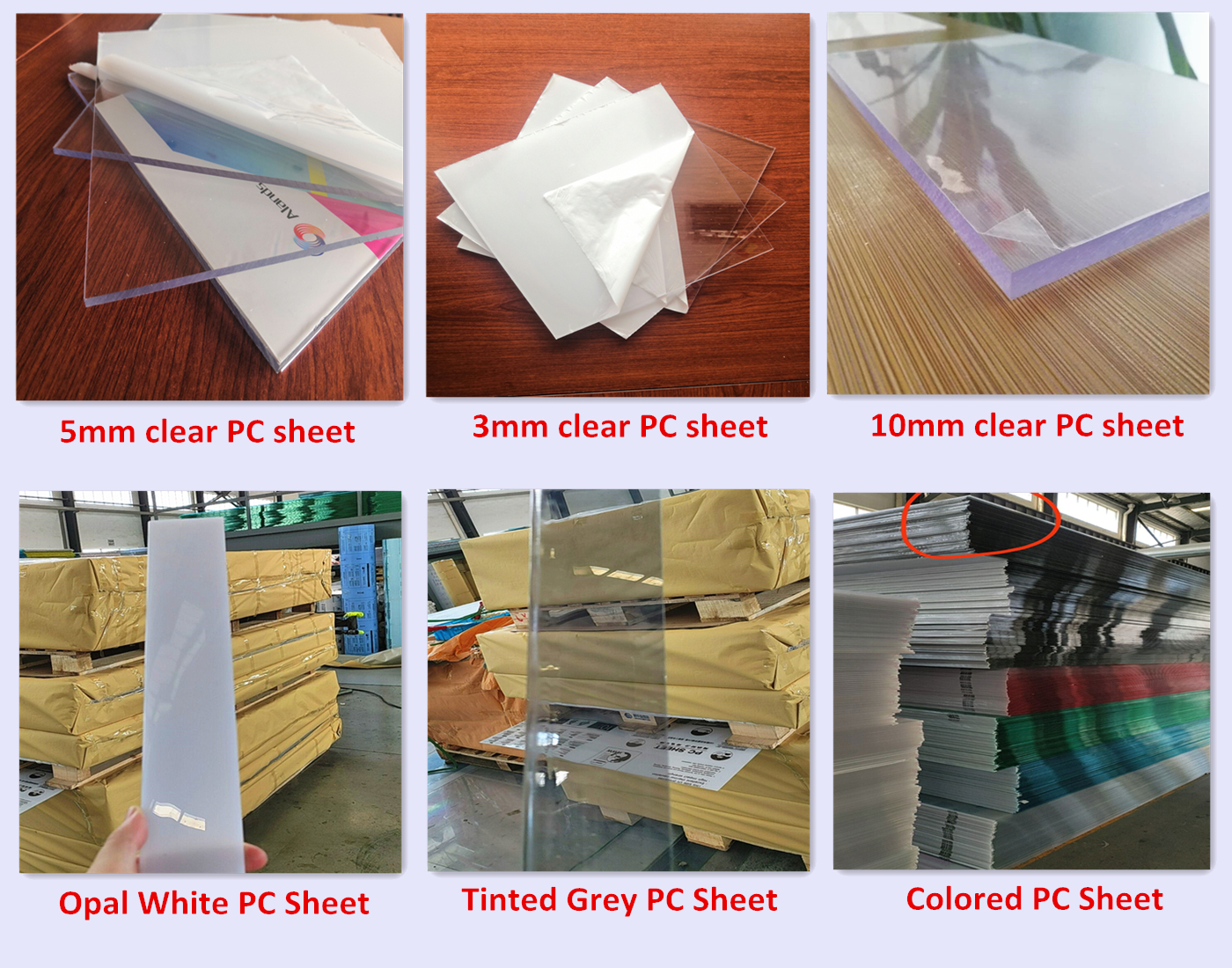

Clear/Transparent Opal Tinted Grey Transparent Blue Transparent Green Frosted Customize color
|
Features
1) Light transmission: Up to 40%-82% depending on color and thickness
2) Impact resistance: 250-300 times of the ordinary glass
3) Fire retardancy: Grade B1 by the national GB8624 test
4) UV surfaces: UV protected from the sunshine
5) Light weight: Only 1/12 of the weight of glass of the same thickness of glass
6) Sound insulation: Significant advantage for sound insulation
7) Weather ability: Service temperature from -40°C to 120°C

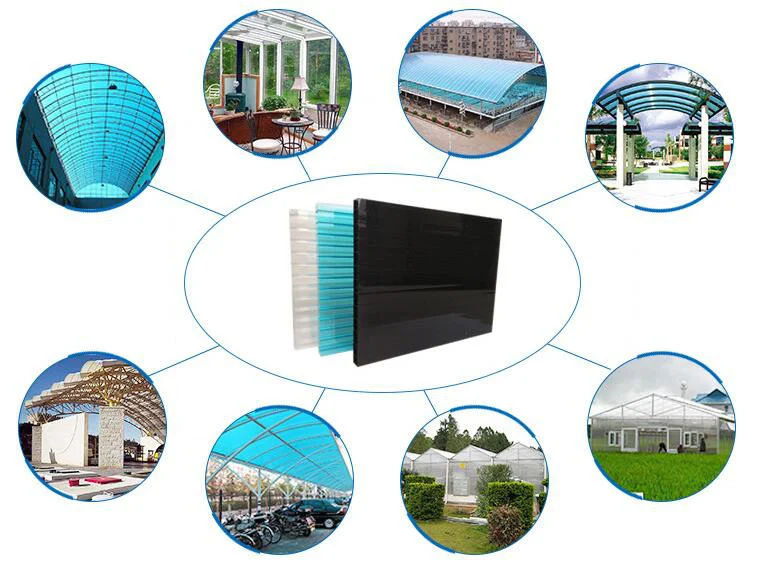

Applications
1) Roofing light sheet and sunshade for office building, store, hotel, stadium, school, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
Types of polycarbonate sheets
1) PC Hollow sheet:
Width: 1.22m, 2.1m,
Length: no limit

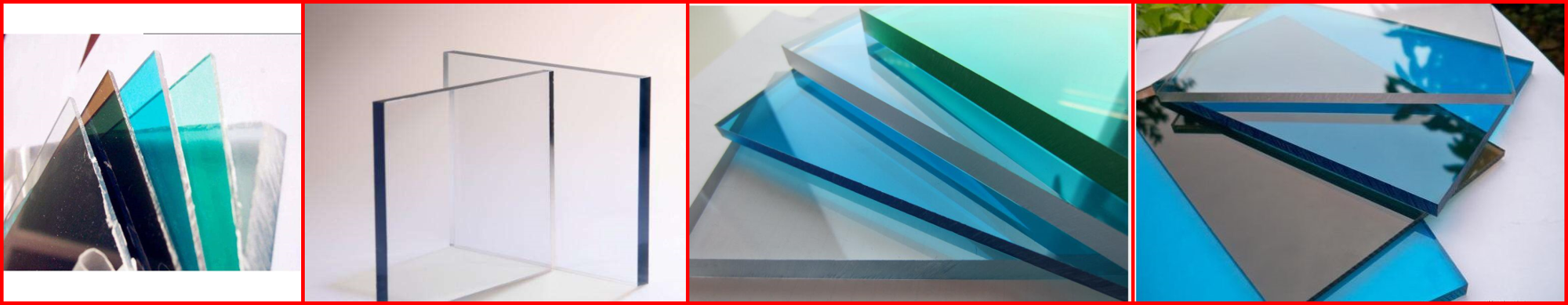

2) PC Solid sheet
Width: 0.6m to 2.1m are OK. Popular is 1.22, 1.5, 1.8, 2.1m)
Length: no limit Popular: 2.44, 3m, 5m and 6m

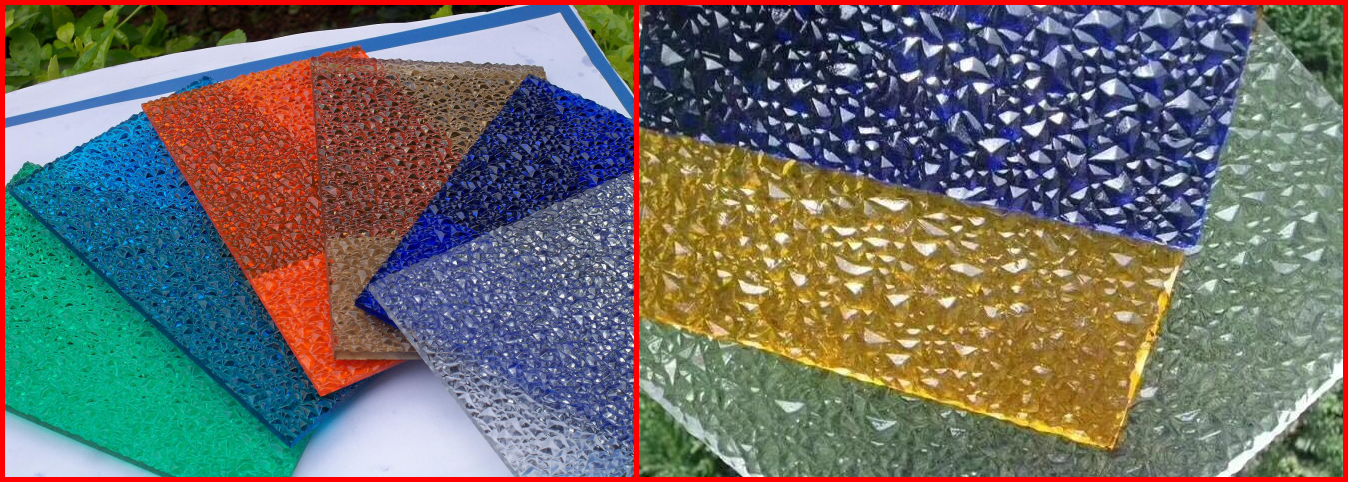

3) PC Diamond Embossed sheet
Technical Sheet
Characteristics | Unit | Data of PC Twin-wall Hollow Sheet |
Light transmission | % | 40 ~ 82 |
Impact strength | J/m | 2.1 ~ 2.3 |
Coefficient of thermal expansion | mm/m .ºC | 0.065 |
Heat conductivity | W/m2 .ºC | 3.0 ~ 3.9 |
Service temperature | ºC | -40ºC~+120ºC |
Tensile strength | n/mm2 | ≥60 |
Bending strength | n/mm2 | 100 |
Bending elastic modulus | mpa | 2400 |
Tensile stress at break | mpa | ≥65 |
Elongation at break | % | ≥100 |
Sound insulation effect | db | 20 decibel decrease for 10mm thick sheet |
Packing

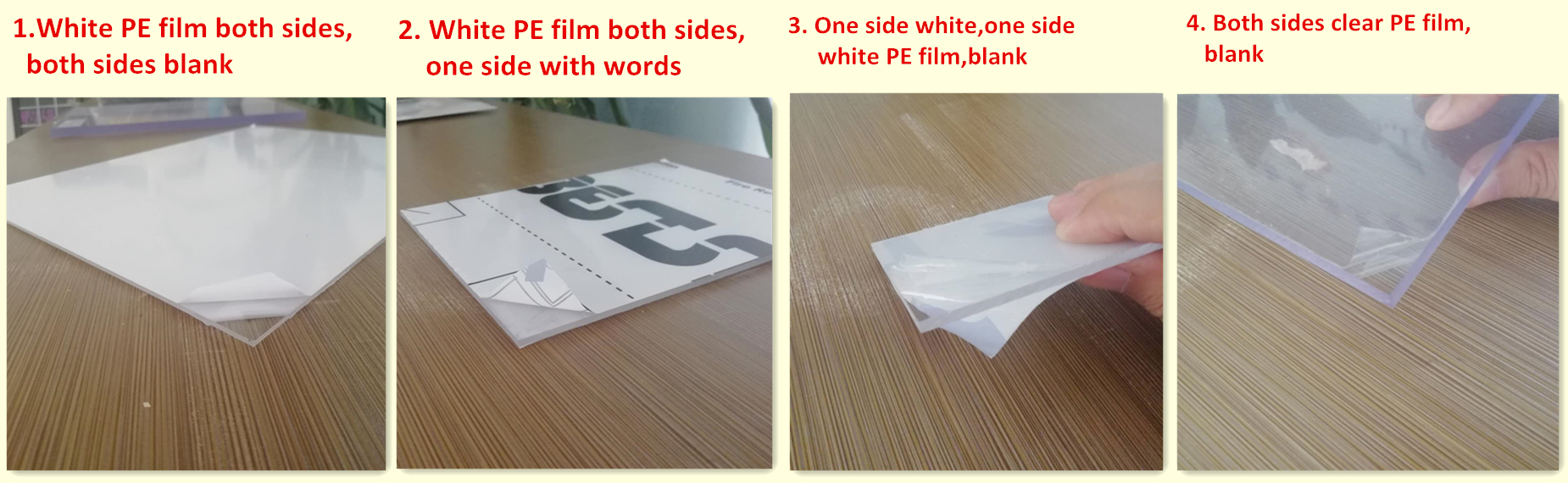

We have five different film masking onto the polycarbonaten sheets suface:
1. White PE film masking on both sides, both sides are blank without any words;
2. One side white with words, the other side clear PE film blank without any words;
3. One side white, the other side clear PE film, both blank without any words;
4. Clear PE film masking on both sides blank.

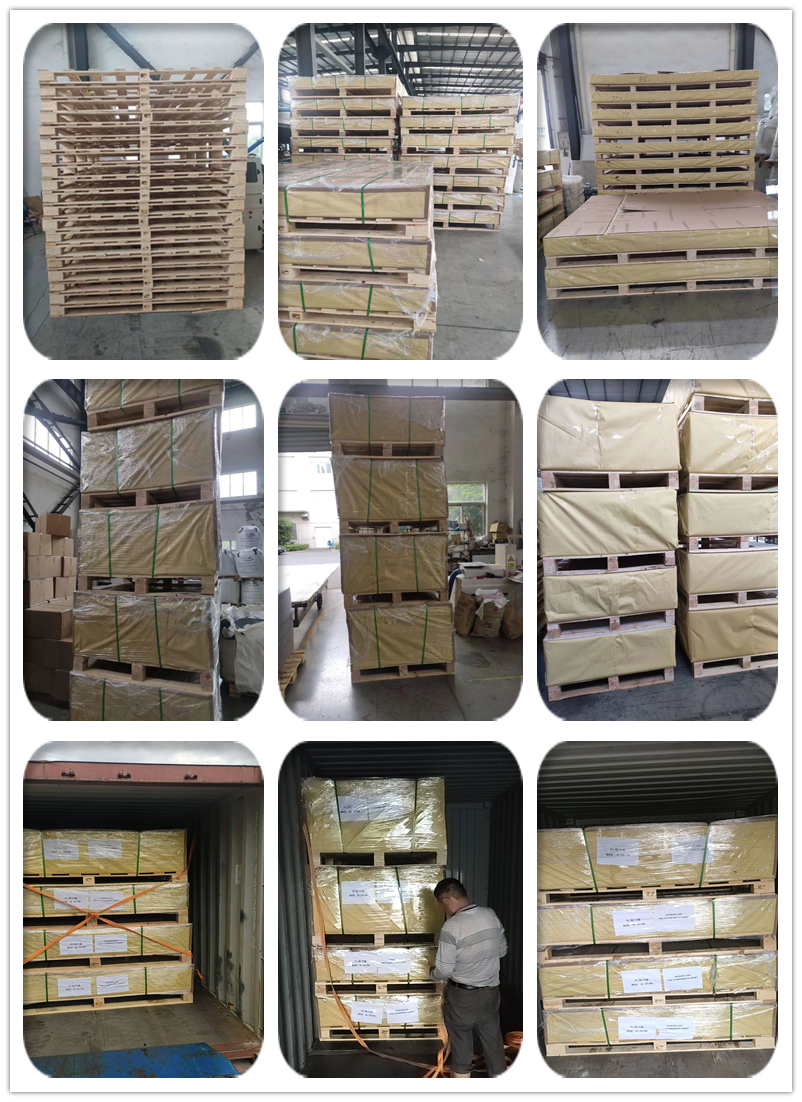

Packing when shipment
Plywood Pallet:
usually can hold 1500KG - 2000KG each pallet, looks very pretty when in loading, easier to unload when goods arrive to denstination.
If you want easy unloading from container, better to choose plywood pallet.
About Us
Alands Plastic is specializing in researching, manufacturing and selling plastic products in China. It is one of the High-technology companies which pay moreattention to the new energy products.We adopt advanced production techniques and data control equipment to produce excellent quality acrylic sheets , PVC foam board and Polycarbonate sheets (PC sheet). All of our products are recognized as qualified standard by Bureau of Technical Supervision.
Our acrylic sheets, PVC foam boards and PC sheets have been enjoying very good markets many years on the basis of stable quality.
Sales Network
Our polycarbonate sheets are popular in Southeast Asia, Europe, South America, North America, Africa, Oceania and the Middle East ! We strive to build global marketingnetwork to provide with timely and thoughtful
sales and after-sales service !

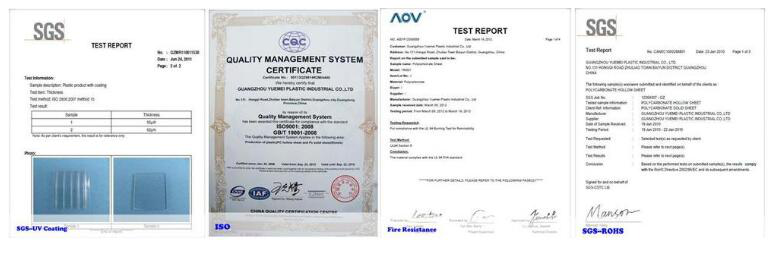

Certification
All of our PC sheets and acrylic sheets are certified by CE and SGS. All of our PVC foam sheets and acrylic mirror sheets are certified by SGS. Our acrylic sheets are produced as per ISO 7823-1:2003 & GB/T 7134-2008. Quality can be guranteed.
Exhibition
Usually we attend two exhibitions of acrylic pleastic at least every year in Shanghai or Guangzhou in China. We also attend international fair in America and Dubai.
Shanghai Expo Fair in March
Dubai SGI Exhibition in January
USA Orlando ISA Fair in March
